PMQW12 Multi-angle Planetary Ball Mill is an essential device for mixing, fine grinding, sample preparation, nano-materials dispersion, new product development and small batch production of high-tech materials. With small size, full-feature, high efficiency and low noise, this product is an ideal instrument for scientific research institutions, higher institutes and corporate research laboratories to obtain the micro-particle samples (four samples can be obtained in one experiment). This instrument can grind and mix samples of different sizes or materials during dry and wet conditions. The smallest particle discharged is 0.1um (namely1 ×10mm-4). Multi-angle Planetary ball mills are widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection and other departments.
Working principle
PMQW12 Multi-angle Planetary Ball Mill is equipped with four ball mill tanks on a large plate. When the ball mill tank rotates (revolution), the ball mill tank rotates in its orbit, while the plate and the ball mill tank do planetary motion, it can also flip a bucket in a three-dimensional space, and can be artificially set to run at a fixed point in any direction, which makes the grinding material more uniform and can solve the problem of sunk bottom and sticky jar of part of the material.
Specifications
|
Applications |
Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc. |
|
Applicable samples |
Soft, hard, brittle, fibrous, dry or wet |
|
Max. feed volume |
2/3 of the of the grinding jar |
|
Vacuum grinding |
optional |
|
Feed size |
soil≤10mm other≤3mm |
|
Final fineness |
0.1μm |
|
Alternate timing |
1-9999min |
|
Working method |
360°flip grinding and fixed point operation |
|
Rotation |
440rpm |
|
Grinding jar |
2000ml、3000ml |
|
Vacuum jar |
2000ml |
|
Certificate |
UL、CE |
|
Power |
380V 5.5kw 50~60Hz |
|

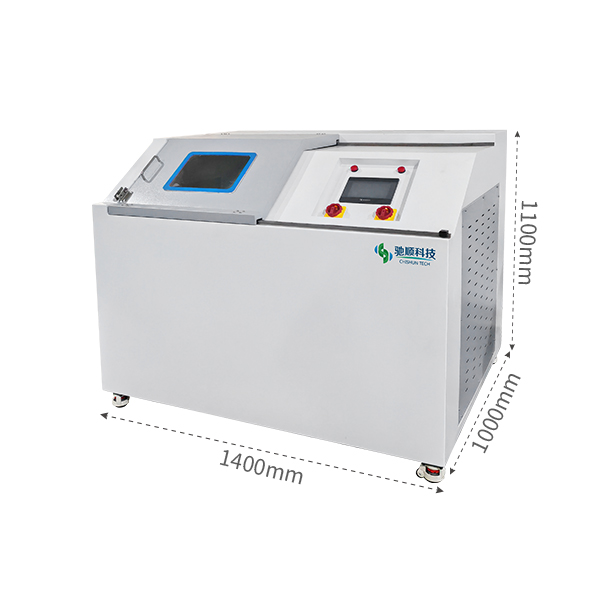

Packaging Details |
133*152*141cm 700KG |
|
Data storage |
20 sets processes |
|
Data monitoring |
Real time monitoring of operational status, supporting fault alarms |
|
Programmable operation |
6 sets operation steps supporting edit/delete |
|
Control mode |
7" HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation) |
|
Jar materials |
Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide，etc. |
|
Competitive Advantage |
1、Factory direct delivery 2、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6、Service Assurance |
