Nanjing ChiShun Tech Dev Co., Ltd
Location:Products > Furnace > Muffle Furnace
1
2
1
2

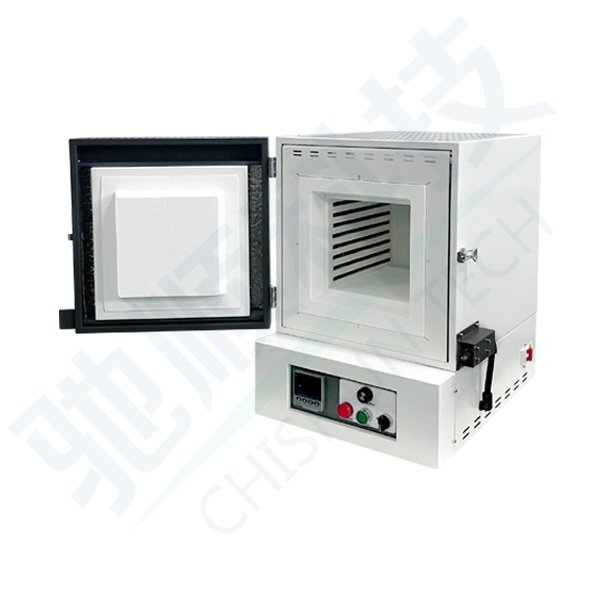

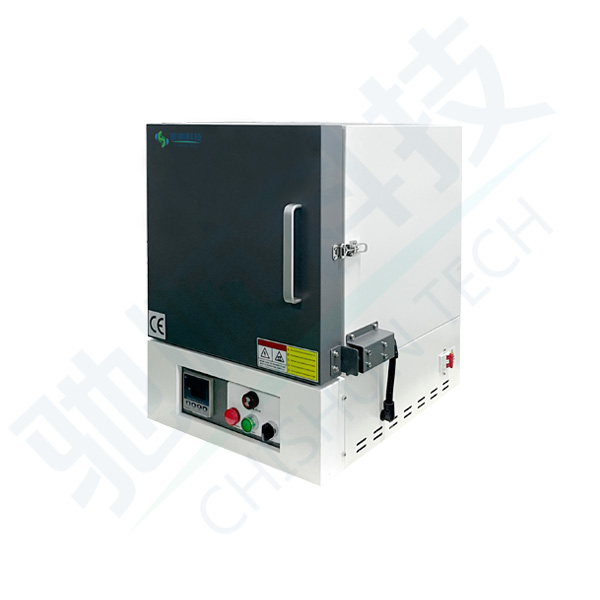

Name: BF1200 Muffle Furnace
Model: BF1200
Introduction: 1200℃ Laboratory muffle furnace (box-type resistance furnace) is used in the sintering and heating of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.
馬弗爐體積小
  • Parameter
  • Video
  • Test case
  • Clients

1200℃ Laboratory muffle furnace (box-type resistance furnace) is used in the sintering and heating of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment.


Furnace Shell

1、The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.

2、Strong metal frame shell structure, low furnace surface temperature.

3、Side-opening furnace door structure, the furnace door opens to the right, easy to operate.


Refractory Material

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption


Heating System

1、High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life.

2、Heating on three sides (left and right sides and furnace bottom), so as to achieve good uniformity in the furnace.

3、The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing.


Temperature Control Panel

1、 PID and SSR control mode, precise temperature control.

2、Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300 and a long service life.

3、The furnace door is equipped with a door-opening power-off safety protection switch.


Program Controller

1、Advanced controllers that meet complex process requirements

2、Simple and direct operation, flexible programming

3、Programmable 30 program segments for a single curve

4、Over temperature and fault alarm, automatic safety protection


Specifications

Model

BF1200-I

BF1200-II

BF1200-III

BF1200-IV

BF1200-V

BF1200-VI

BF1200-VII

Chamber sizeW xD xHmm

100x100x100

150x150x150

180x230x150

200x300x120

200 x300x200

250x300x250

300x500x200

Outer sizeW xD xHmm

250 x240x350

430x465x620

460x570x660

480 x630x630

480 x630x710

550x635x780

600 x870x735

Max temperature

1200

Working temperature

1100

Power supply

220V/1.2KW

220V/2.5KW

220V/3KW

220V/3KW

220V/4KW

220V/6KW

380V/7.5KW

Heating element

HRE Alloy resistance wire

Chamber material

Polycrystalline inorganic alumina ceramic fiber material prepared by wet vacuum filtration

Temp.Precision

±1

Termocouple

N Type termocouple

Temperature controller

Intelligent microcomputer PID temperature control instrument, SSR control, PID parameter self-tuning function; programmable 30 program segments, program temperature rise, program heat preservation, program cooling

Heating rate

1-25/min free adjustment

Furnace structure

Furnace temperature control integrated structure

Equipment protection

Modular control, sound and light alarm signal will be sent out for over temperature and broken coupler in the working process, and the protection action will be completed automatically

Safety protection

The equipment is equipped with a circuit breaker, which will automatically pop open in case of short circuit leakage, which can protect the safety of equipment and operators

Furnace shell

High-quality cold-rolled steel plate CNC machine tool blanking processing, after welding, grinding, polishing, phosphating, pickling, surface electrostatic spraying plastic powder

Standard packing

1. Furnace body 1 set 2. Temperature controller 1 set 3. Power cord 3 meters 4. Thermocouple 1 set 5. Manual 1 copy 6. Crucible pliers 1 set 7. High temperature gloves 1 pair

Optional

1. Optional exhaust chimney for evacuation of volatile substances 2. Optional corundum crucible, furnace floor, shed board and other kiln furniture 3. Optional material recorder for online recording of temperature curves

Competitive Advantage

1Factory direct delivery

2Quality assurance

3Best price

4Compact in size

5Complete specifications

6Service Assurance
